Make it your way.

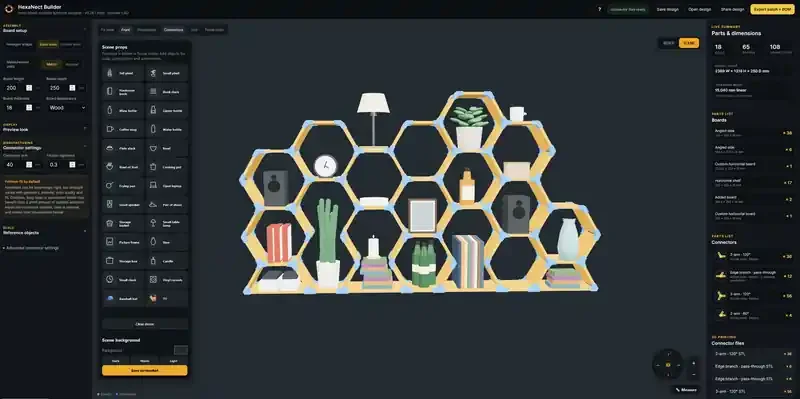

Design in the Builder, test the fit, then download the parts made for your project.
From screen to shelf.
- DesignMake your shape.
- Set dimensionsMatch your board.
- TestTry one connector.
- PrintPrint the parts.
- AssembleBuild one cell at a time.
- OptionalAdd fasteners or glue.
Each new hexagon connects to the ones around it, and the structure becomes more rigid as it grows.

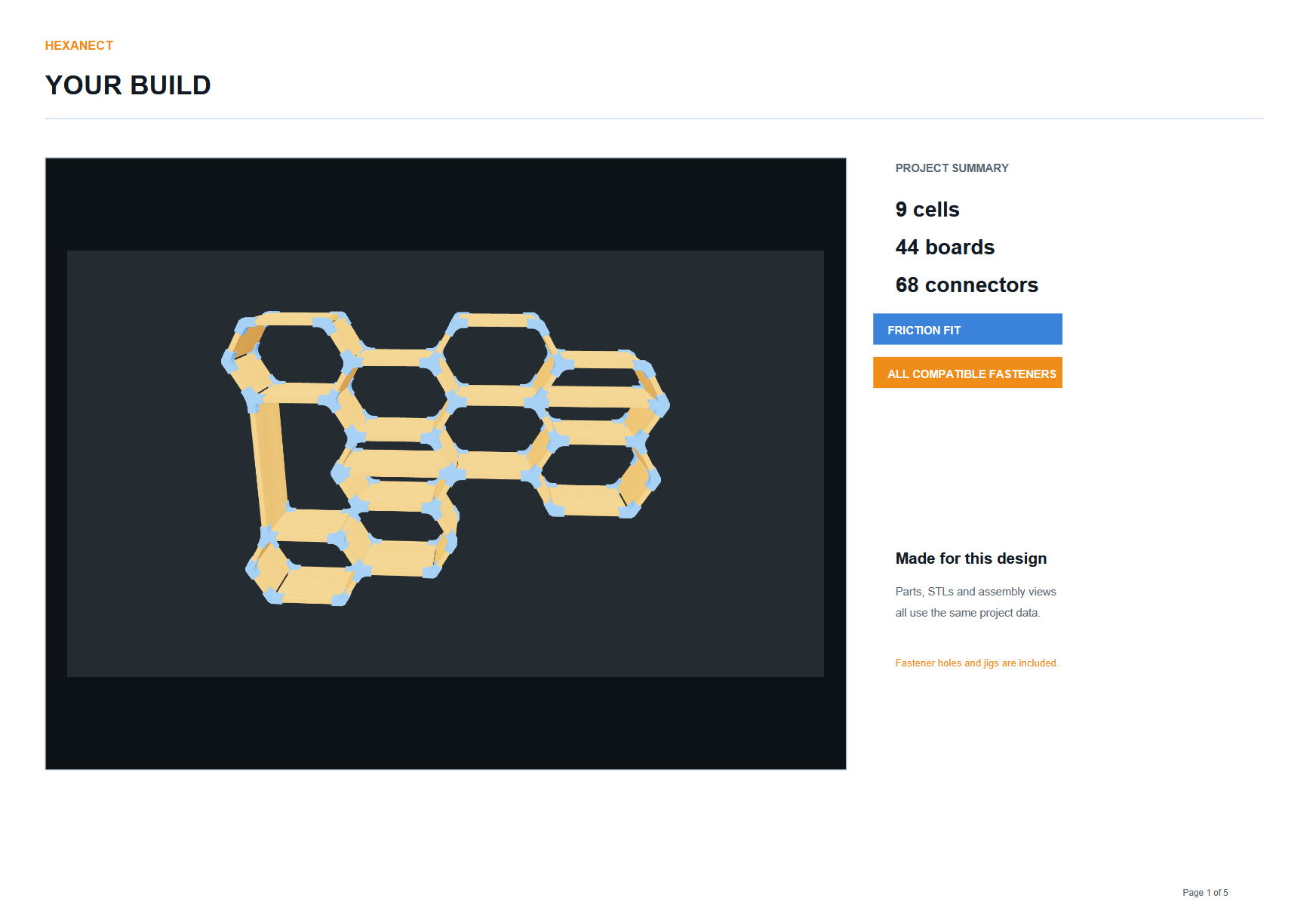

One PDF. The parts that match.
The PDF starts with your build and parts summary, followed by the design in metric and imperial units. The ZIP contains the matching connector STLs, plus a marking jig when fasteners are used.
Test one connector first.
The standard 0.1 mm clearance is between the measured board thickness and the inside of the connector arms. Adjust it only if needed for printer tolerance or board variation.
Use settings that ensure a strong part. Small differences in board size, thickness, warp or printer calibration can add up across a large build.
Useful for open shapes and wall mounts.
Complete hexagons support one another. Open shapes, unusual geometry and wall-mounted builds may benefit from fasteners.
Choose where they go

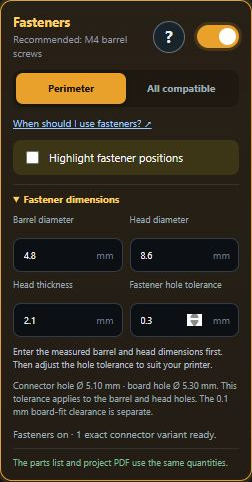

Turn Fasteners on, then choose Perimeter or All compatible. Perimeter adds them only to exposed joints.

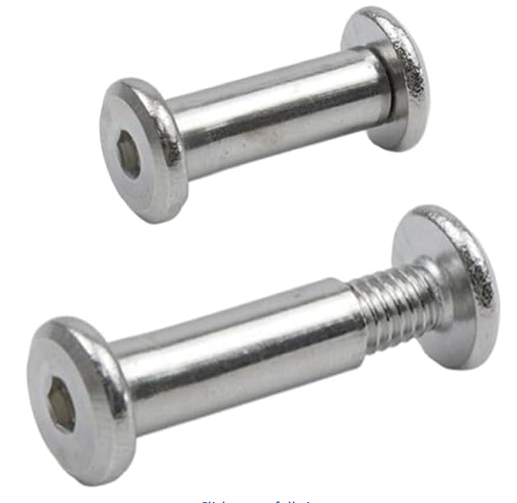

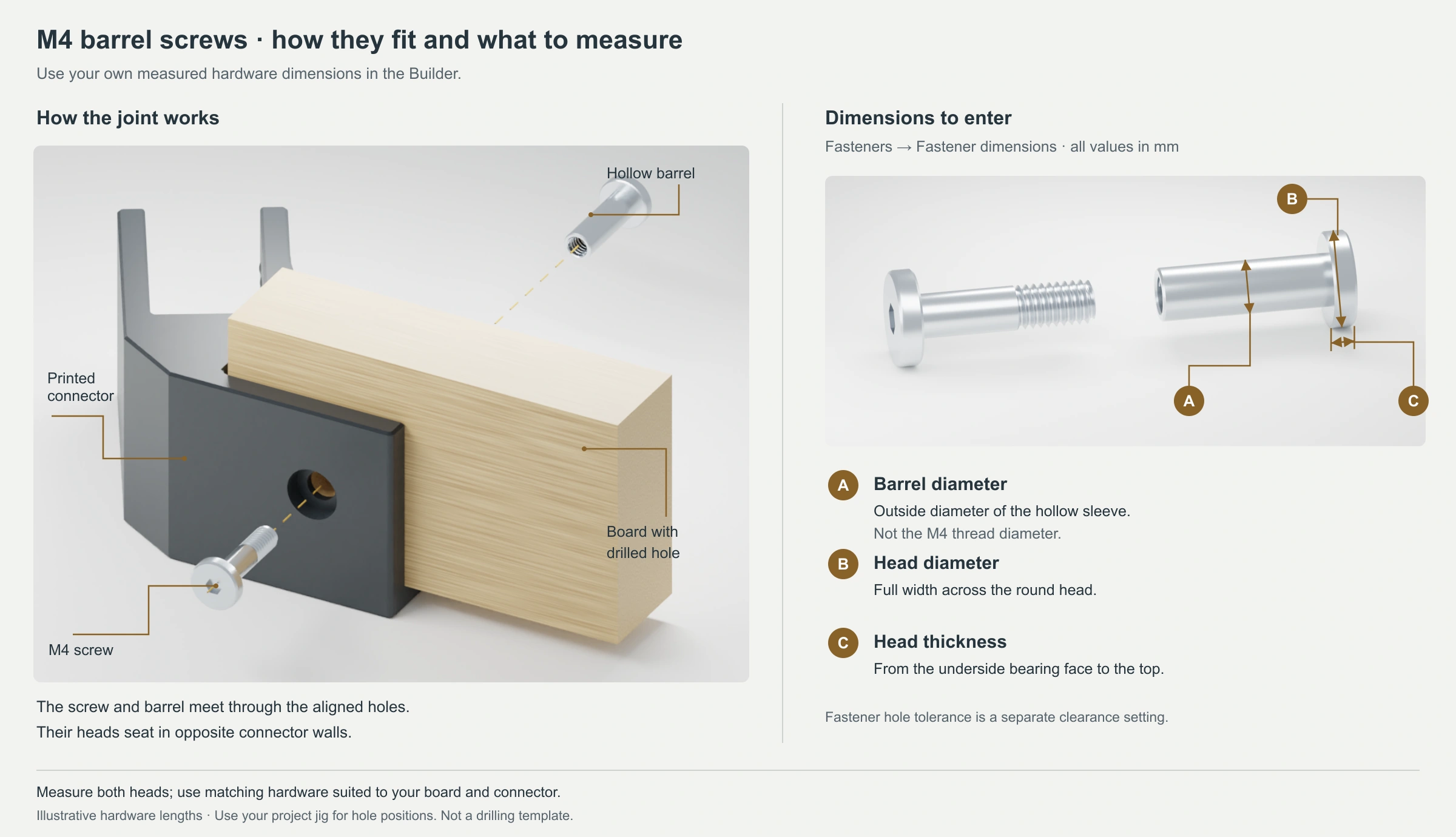

M4 barrel screws are recommended. They are easy to use, look clean and clamp the connector around the board. Avoid countersunk screws; their shape can push printed layers apart.
View recommended M4 barrel screws →Affiliate link. HexaNect may earn a small commission at no extra cost to you.
Use the jig for marking.
Place the jig, mark the hole, remove the jig, then drill. The fastener holds the joint by clamping the connectors together.
Keep wall-mounted builds lighter.
Fasteners are recommended to make the board-to-connector joints stronger. Use suitable wall anchors, and keep the load lower than you would on a comparable floor-standing shelf.
A short safety note
There is no universal load rating. Strength depends on the design, board, printed parts, fit and anchoring. Inspect the parts, secure tall furniture and avoid climbing, overhead or other safety-critical uses.
Start with one hexagon.
The Builder works out the connector parts as you go.
